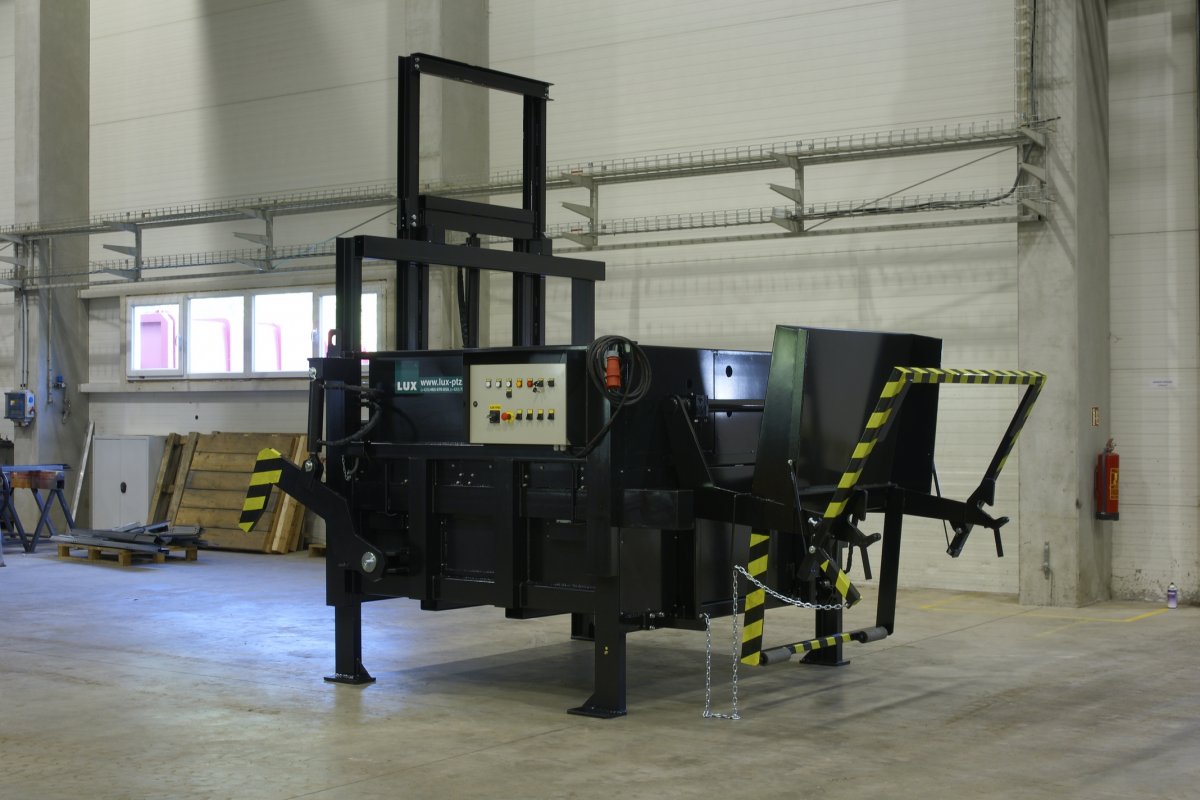

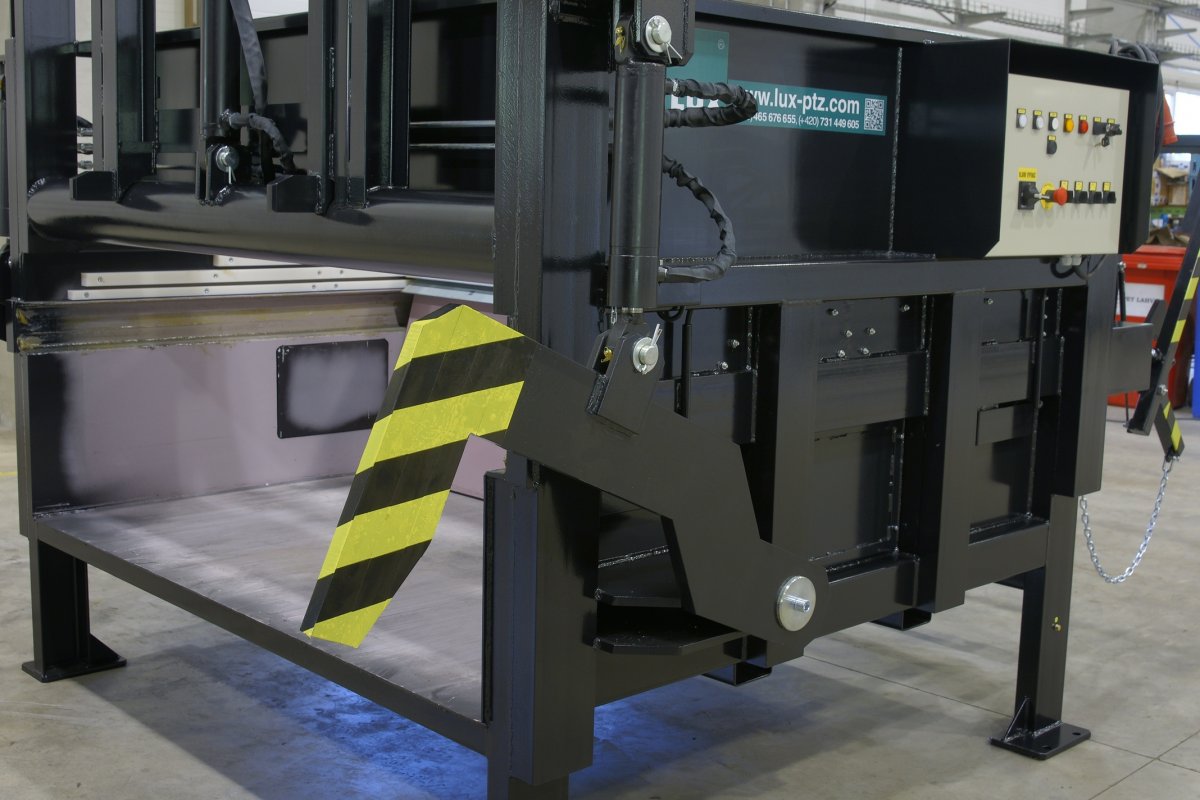

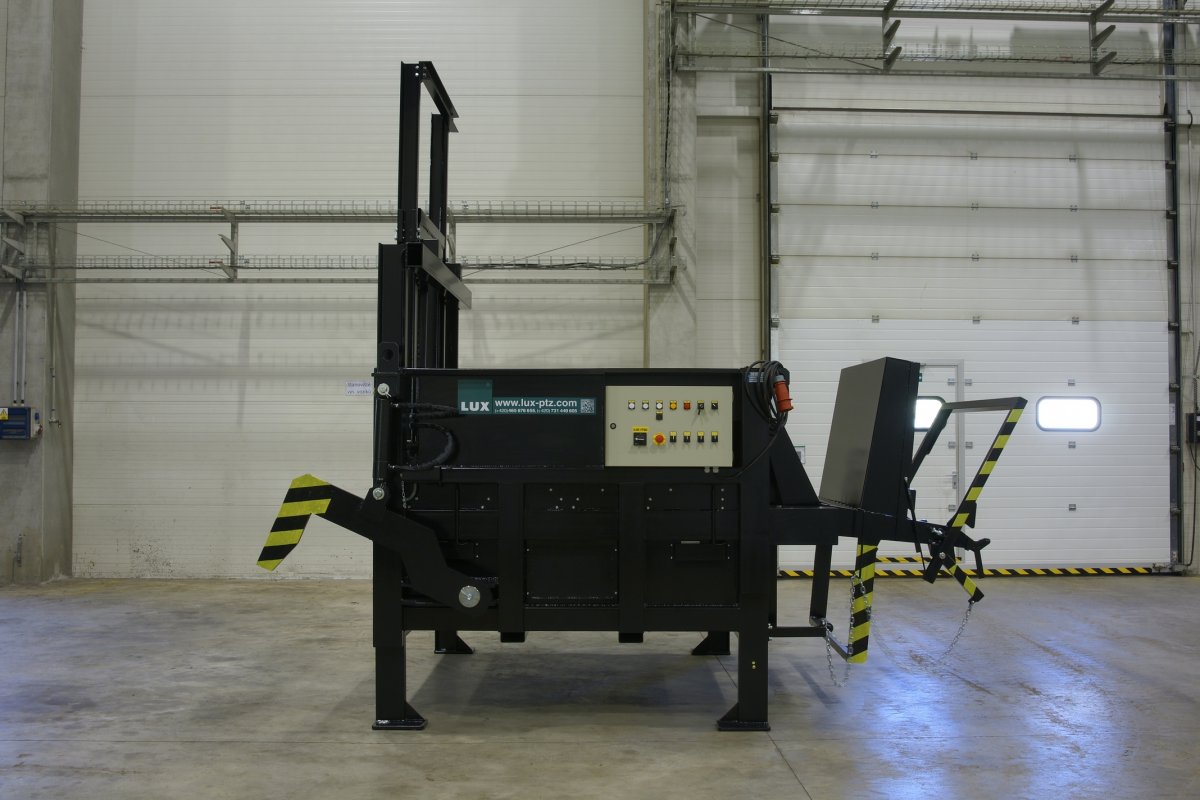

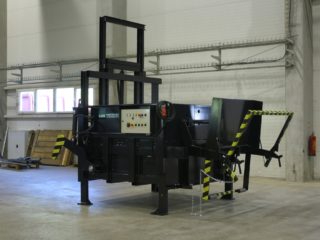

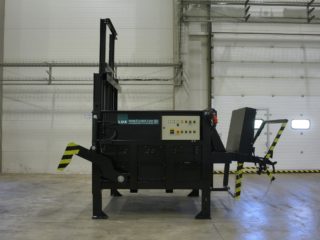

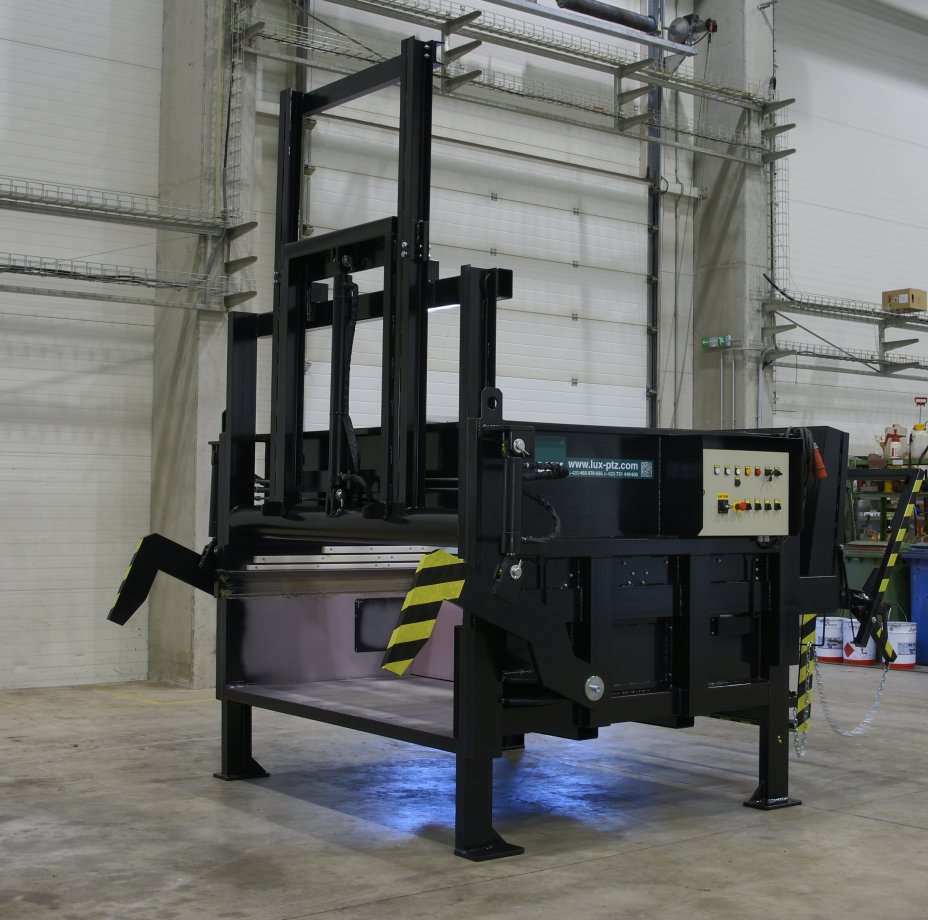

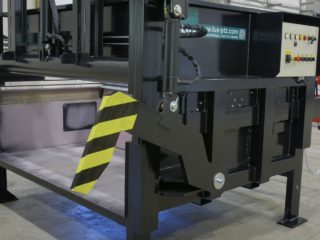

SL 1100-H

SONY DSC

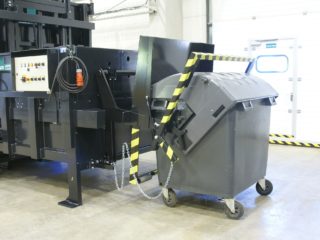

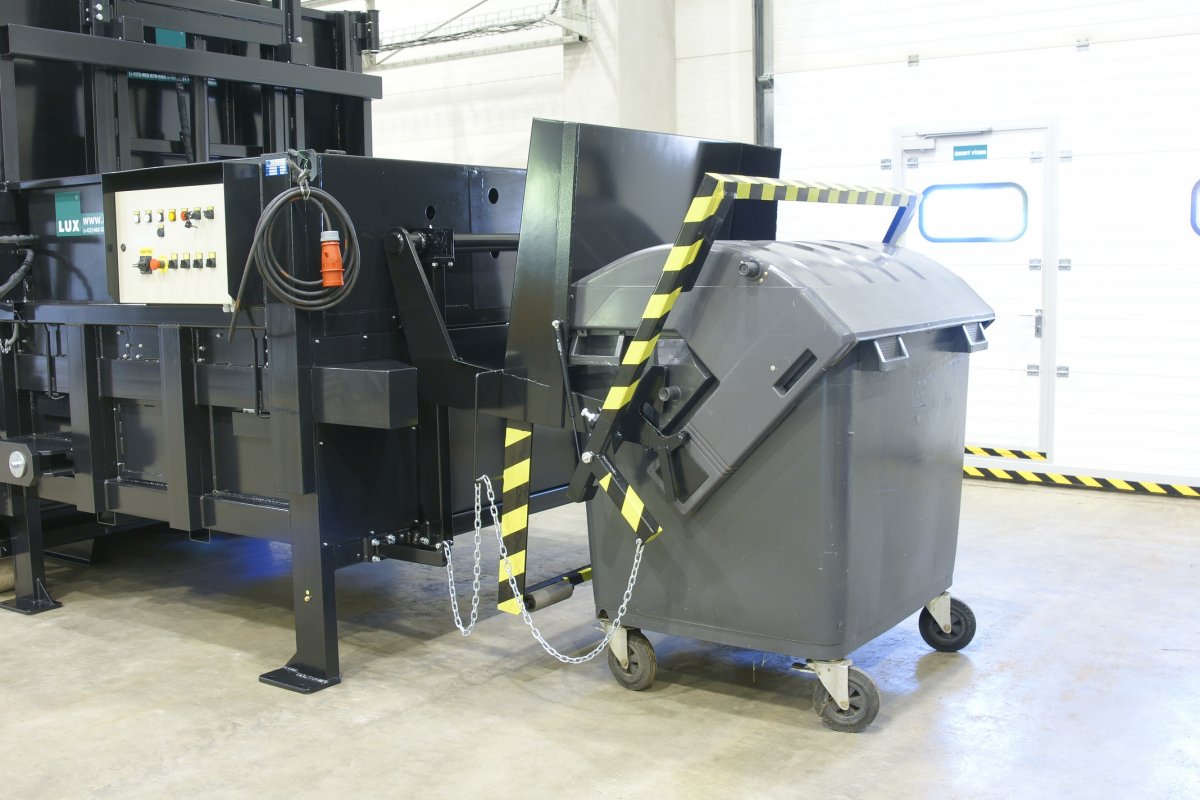

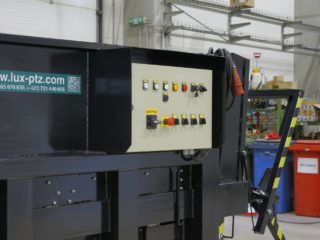

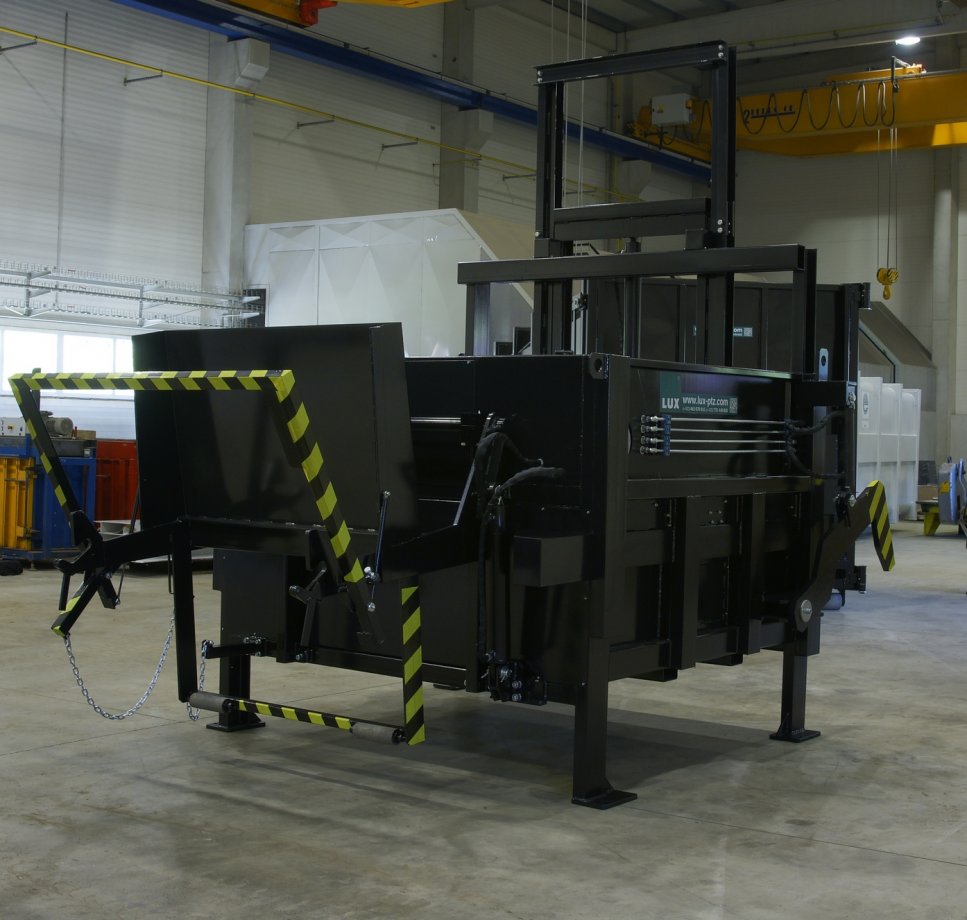

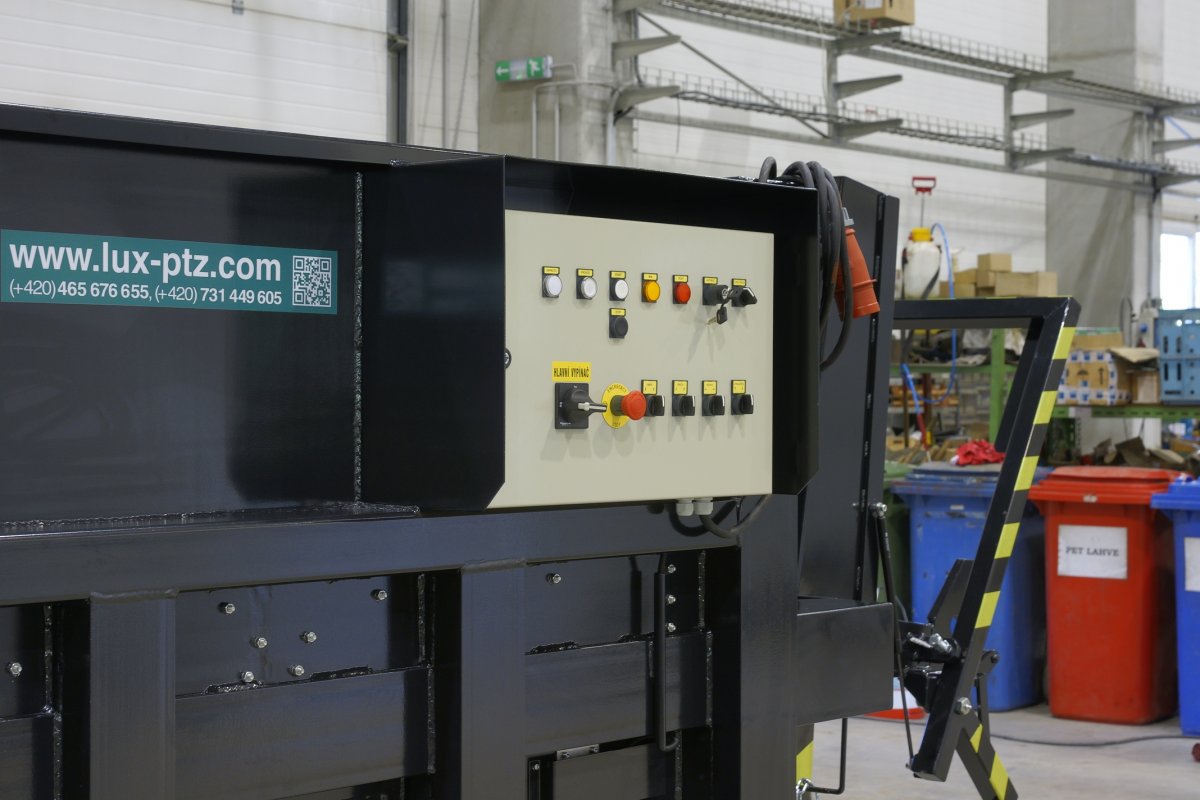

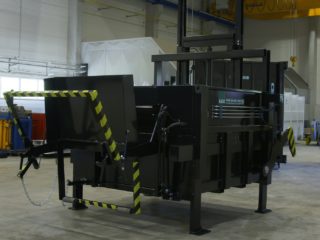

The stationary press is designed according to the latest state-of-the-art trends in this field of mechanical engineering. The press has a robust structure made of high-quality steel sheets and profiles with a high-quality finish. It is suitable for pressing different types of sorted materials, paper, plastic and various other types of industrial packaging. The press is equipped with a central electronic control unit that also enables external communication with the press. This stationary press for pressing waste of a smaller size is equipped with a hydraulic connection and a system for closing the container door. We, of course, offer non-stop technical support (including 24-hour service) for the press.
The press and all the other offered accessories meet all the latest operational safety requirements.
The SL 1100-H stationary press is suitable for small and medium-sized companies for various types of pressed material.

Technical dataSL 1100-H
Pressing force (t)35
Specific pressing force (kg/cm2)3,5
Loading hole size (mm)1450 x 1380
Compression chamber size (WxDxH) (mm)1450 x 1380 x 1270
Compression chamber loading height (mm)1730
Compression chamber volume (m3)1,8
Lifting capacity (m3)1,1
Hourly output (m3/hod.)70
Work cycle time (s)50
Power consumption / Voltage / Fuse (kW/V)5,5 / 400
Safety (A)Samostatné jištění 25A/charakteristika C
Weight (kg)2470
Machine dimensions (WxDxH) (mm)2560 x 2740 x 3420
Shipping dimensions (WxDxH) (mm)2560 x 2740 x 2520
