GARBAGE AND LAUNDRY CHUTE SYSTEMS

Waste management logistics systems in buildings are one of the modern trends in the technical equipment of buildings, and today’s architecturally perfectly designed buildings actually require these modern technologies.

Efficient solutions for buildings

Today’s times are characterized by the utmost emphasis on efficient and “responsible” solutions to a wide range of issues that arise for us as a society along with the ever-increasing population, its lifestyle and the habits created by this lifestyle.

The fact that the number of products and various “consumables” is growing along with the growing population is a sober reality. One can thus only agree with the rising trends leading to the sorting and subsequent recycling of a wide range of materials left all around us in the form of waste. Commercial and residential buildings are thus becoming the “primary sources” of waste for the entire recycling process, and our conscience or legislation will sooner or later force them to take action leading to responsible waste management.

The legislation already deals primarily with the issue of sorting waste according to the way in which it is subsequently processed.  It is perhaps only a matter of time when it will be commonplace for these “primary sources” to pass on their waste in a form that is sorted and prepared for the next chain of waste management processes.

Building owners and operators are naturally looking for ways to handle waste efficiently through waste management logistics systems for buildings.

At present, it is no longer a utopian vision for waste to be sorted into waste sorting bins, which makes it as easy as possible to move this sorted waste to the technical room, and from there, directly to the processors in its compressed form. Thinking about the waste management efficiency of a building is just as natural as thinking about energy solutions for a building.

ARGUMENTS FOR GRAVITY-FED GARBAGE CHUTES:

(as opposed to other ways of transporting waste in buildings)

  • it is an effective, efficient and aesthetically pleasing solution
  • its purchase costs are significantly lower the costs of installing an elevator
  • you save on the costs of transporting waste away from the building
  • it is a hygienic solution for the waste management of buildings
  • safe operation
  • easy and fast installation – high variability
  • unlimited service life
  • fire safety




SUMMARY OF CHARACTERISTICS

In practice, a COMPREHENSIVE BUILDING WASTE MANAGEMENT LOGISTICS SYSTEM is used mainly when various types of waste are handled and laundry is transported to a laundry room or technical room.

Gravity-fed chutes are the backbone of any consistent logistics system in buildings. In principle, they serve the same purpose for both waste and laundry handling. They differ only in the details (in particular the diameter of the chute tube, the permeability of the chute door and the solution for the outlet), which facilitate the handling of whichever material it may be.


WASTE CHUTES

In particular for offices, office buildings, banks, hotels, hospitals, nursing homes, residential units, etc.

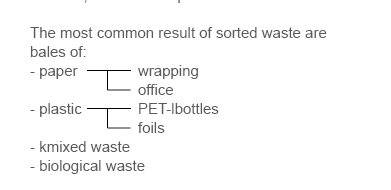

Waste sorting begins at every workplace or in every room. Thorough waste sorting is significantly facilitated by waste bins that are adapted for that express purpose. They have compartments or several separate boxes for each waste group. In most cases, these compartments also have auxiliary illustrative pictograms or visible inscriptions designating the waste type that is to be stored in the individual boxes. On each floor, there are waste collection trolleys used to transport waste that has already been sorted to the door of the gravity-fed chute. Waste collection trolleys are not used in buildings with residential units, but bags containing normal household waste are thrown directly into the gravity-fed chute. In optimal cases, the gravity-fed chute leads to a technical room equipped with means for the final waste processing step. Bags with sorted waste (differentiated, for example, by the colour of a bag, a coloured marking on the bag, etc.) are fed down through the chute and are then pressed according to the waste group. The result is neat, easy-to-handle and tradable waste bales.

Depending on the type of pressed material and pressing machine, you can compress the volume of the original waste by:

5 to 20x!

For the optimal pressing of waste bales, we produce a wide range of presses with various outputs.

CHUTE FOR LOOSE LAUNDRY

CHUTE FOR LAUNDRY IN BAGS

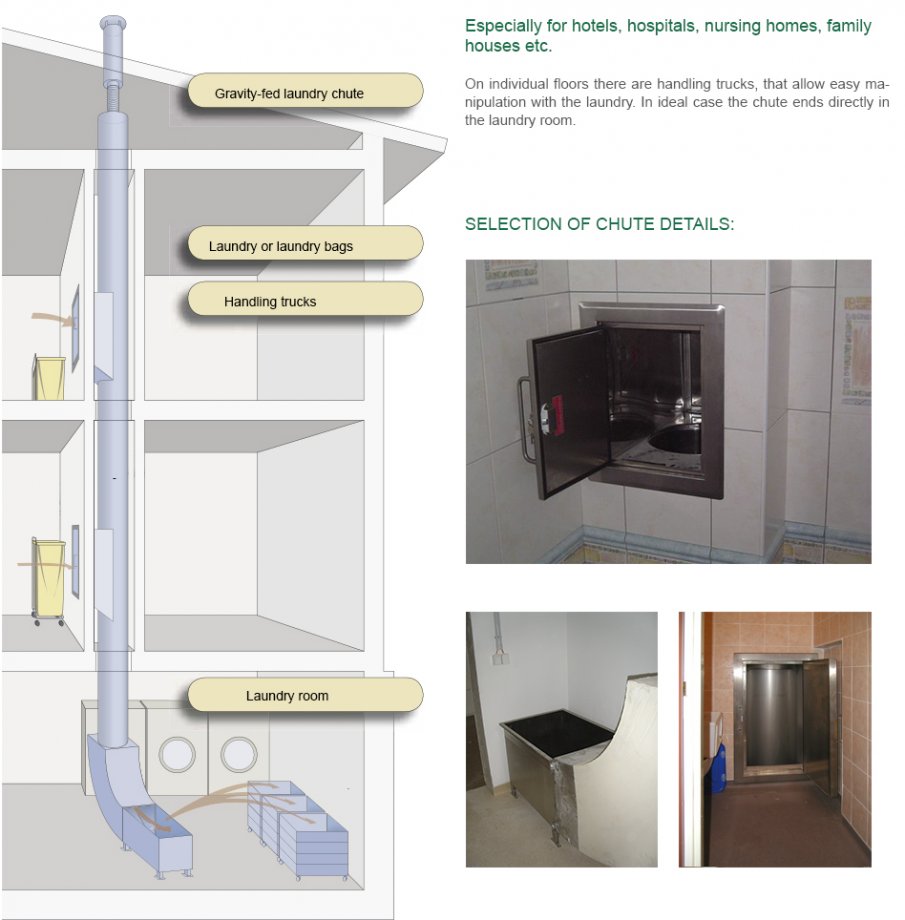

Laundry chutes are practical devices that quickly and efficiently transport laundry from individual floors to a storage room in the basement. Dirty laundry is usually collected in bags, which are then thrown into the chutes. The chutes must have an outlet right in a room that is equipped with a collection container and must be designed for storing or washing laundry in the project. Chutes are produced in various diameters. The diameter used most often for this type of chute is 500 mm. Chutes for larger buildings can be equipped with ventilation, disinfection, washing and fire-extinguishing equipment. The door can be equipped with mechanical or electromagnetic locks. Chutes for loose laundry are only used in smaller buildings – e.g. family houses and guest houses (max. 3 dumping points).

logist1

CHUTES FOR WASTE IN BAGS

Mostly used in offices, office buildings, banks, hotels, hospitals, nursing homes, residential units, etc. Chutes for waste in bags are a modern method of removing waste from buildings. The waste is collected in bags and is then transported through the chute tube directly to the basement of the building (where the technical rooms tend to be). Depending on the specific conditions, the chute can be modified to have an outlet either directly at the collection containers or the waste is re-sorted and compressed. Chutes are supplied in various diameters. The chute diameters used most often for this purpose are 500 and 600 mm. Chutes for larger buildings can be equipped with ventilation, disinfection, washing and fire-extinguishing equipment. The door can be equipped with mechanical or electromagnetic locks.

logist2
