L8-2

DOUBLE-CHAMBER BALING PRESS
with increased output
+ possible additional chambers

Offers

  • The traditional bestseller of our production adjusted to meet the requirements of today’s times (cost savings) with 60 % more pressing force can press even heavier bales and thus save other associated costs – fully loaded transport vehicle, handling costs, strapping material, warehouse space, etc.
  • All the presses are equipped with a universal and easy-to-reach strap and binder twine holder
L8-2-1x

LONG-LASTING COLOUR STABILITY WITH GLOSS

  • The presses are coated with a powder coating (komaxit), which is characterized by its long-lasting colour stability and gloss.

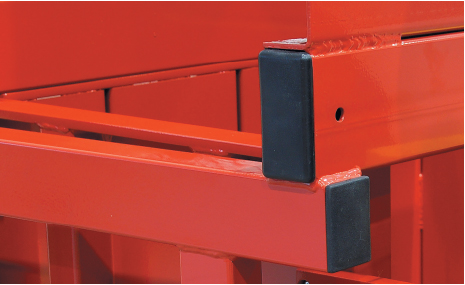

ELEGANT COVERING SOLUTION

  • The plastic profile end caps are an elegant solution for covering the sharp edges of the structure of all the presses
L8-2-2

L8-2-3

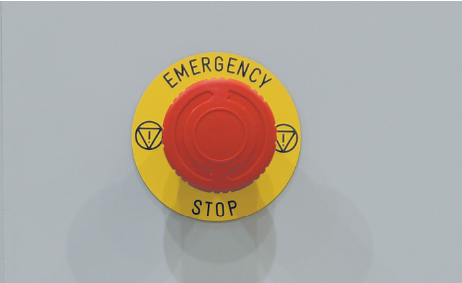

THE MOST IMPORTANT SAFETY ELEMENT

  • “TOTAL STOP” The most important safety element with double wiring.

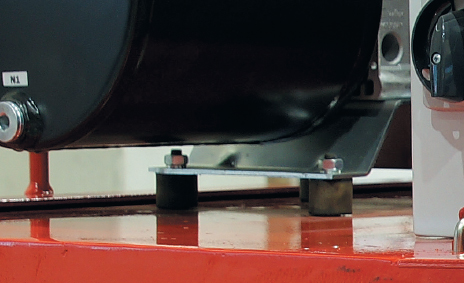

VERY LOW NOISE

  • The flexible base of the unit in the form of silentblocks ensures a very low noise level.
L8-2-4

L8-2-5

PRESSING DIFFERENT TYPES OF MATERIALS

  • Cardboard – weighing up to 120 kg
  • PET bottles – weighing up to 72 kg

CONNECTABLE COMPRESSION CHAMBERS

  • The installation of additional compression chambers in the basic press is very quick and easy.
L8-2-6

L8-2-7

HIGH ENERGY EFFICIENCY

  • Our presses are characterized by a very high energy efficiency – similar to that of a normal household appliance.

PRESS DIMENSIONS

l82

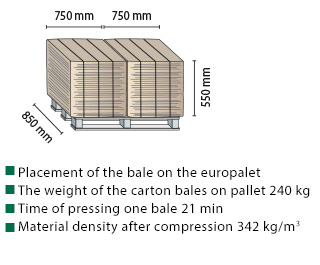

BALE DIMENSIONS

Technical data


Pressing force
(t)
8
Specific pressing force
(kg/cm2)
2
Loading hole size
(mm)
750 x550
Compression chamber size (WxDxH)
(mm)
750 x 550 x 900
Compression chamber loading height
(mm)
1250
Compression chamber volume
(m3)
0,4
Bale size (WxDxH)
(mm)
750 x 550 x 850
Bale weight
(kg)
až 160
Hourly output
(kg/h)
až 350
Number of strapping parts
(ks)
3
Work cycle time
(s)
30
Power consumption / Voltage / Fuse
(kW/V)
2,2 / 1x230 / 16 C
Weight
(kg)
620
Machine dimensions (WxDxH)
(mm)
2000 x 850 x 1950
Shipping dimensions (WxDxH)
(mm)
2000 x 850 x 1950
Possibility of additional chambers
(yes/no)
ANO

Video


Příslušenství


BALE TRUCK

  • For easy operation with bales

CUTTING KNIFE

  • Cutting knife with magnet

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

Parking rack



Additional chamber – single



Additional chamber – double
