L8-1

SINGLE-CHAMBER BALING PRESS
with increased output
+ possible additional chambers

Offers

  • Elegant pressing solution
  • Possibility to connect additional compression chambers to increase the capacity of the press, or if required, for the direct sorting of different types of materials.
  • Safe operation
  • A compact design
  • High compression ratio
L8-1-1

HIGH-QUALITY BALL BEARINGS

  • The easy mechanical slide of the compression head on all the presses is ensured by high-quality ball bearings.

L8-1-2


GUIDING STRAPPING MATERIAL

  • Adjustable rubber holder for correctly guiding strapping material.
L8-1-3

L8-1-4

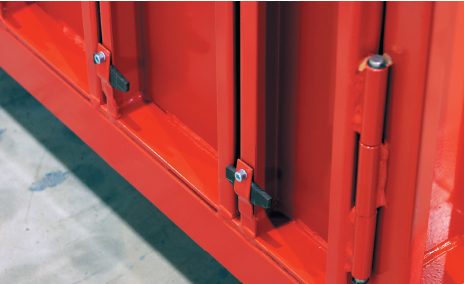

RETURN FLAPS

  • Return flaps, which are used to capture the re-expansion of the compressed material in the compression chamber, are standard equipment of our presses

L8-1-5

PRESSING DIFFERENT TYPES OF MATERIALS

  • Cardboard – weighing up to 120 kg
  • Textiles – weighing up to 148 kg

MODULAR SYSTEM

  • Modular system of additional compression chambers and other accessories.
L8-1-6

L8-1-7

COMPLIANCE WITH SAFETY REGULATIONS

  • Compliance with safety regulations is a top priority for us. Our use of equipment such the sleeves on the hydraulic hoses is proof of this.

PRESS DIMENSIONS

l81

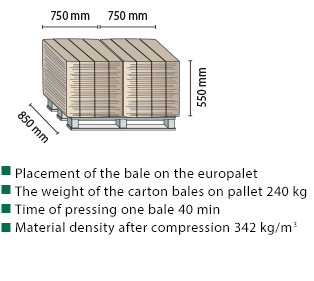

BALE DIMENSIONS

Technical data


Pressing force
(t)
8
Specific pressing force
(kg/cm2)
2
Loading hole size
(mm)
750 x 550
Compression chamber size (WxDxH)
(mm)
750 x 550 x 900
Compression chamber loading height
(mm)
1250
Compression chamber volume
(m3)
0,4
Bale size (WxDxH)
(mm)
750 x 550 x 850
Bale weight
(kg)
až 160
Hourly output
(kg/h)
až 180
Number of strapping parts
(ks)
3
Work cycle time
(s)
30
Power consumption / Voltage / Fuse
(kW/V)
2,2 / 1x230 / 16 C
Weight
(kg)
473
Machine dimensions (WxDxH)
(mm)
2020 x 850 x 2000
Shipping dimensions (WxDxH)
(mm)
1350 x 850 x 2000
Possibility of additional chambers
(yes/no)
ANO

Video


Příslušenství


BALE CART

  • For easy operation with bales

CUTTING KNIFE

  • Cutting knife with magnet

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

Parking track



Additional chamber – single



Additional chamber – double
