L5-V

SINGLE-CHAMBER BALING PRESS
with a tiltable chamber

Offers

  • A large pressing force
  • A tiltable chamber for fast loading
  • Simple and logical operation
  • A compact design
  • Small space requirements
  • Low compression chamber loading height



L5-V-1

TILTED CHAMBER

  • A tilted chamber ready to be filled with material.

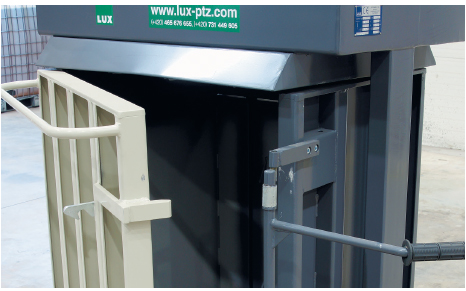

MOBILE SIDE WALL

  • A mobile chamber side wall for the easy removal of bales with an end switch for ensuring that the door closes properly.
L5-V-2

L5-V-3

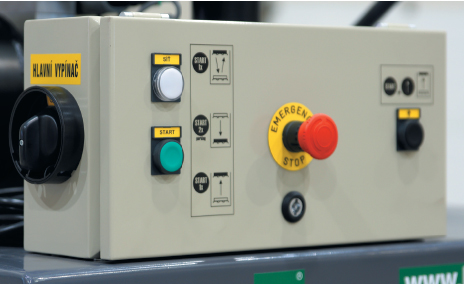

STATE-OF-THE-ART
ELECTRICAL
COMPONENTS

  • All the control cabinets are equipped with state-of-the-art electrical components, including a central safety module.

EASY OPENING

  • Simple two-stage opening of the compression chamber door.
L5-V-4

L5-V-5

EASY TILTING OF THE COMPRESSION CHAMBER

  • Lever for the easy tilting of the compression chamber and for locking the chamber in the correct position.

VISUAL INSPECTION

  • For the safe operation of all our presses, we enable a visual inspection of the current pressure in the hydraulic system.
L5-V-7

L5-V-7

PRESSING DIFFERENT TYPES OF MATERIALS

  • Cardboard – weighing up to 77.5 kg
  • Metal chips – weighing up to 97 kg

PRESS DIMENSIONS

l5v

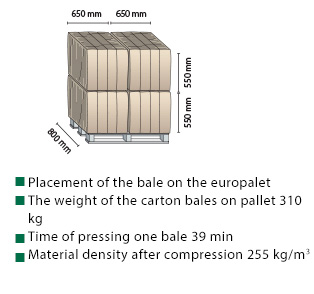

BALE DIMENSIONS

Technical data


Pressing force
(t)
5
Specific pressing force
(kg/cm2)
1,5
Loading hole size
(mm)
650 x 450
Compression chamber size (WxDxH)
(mm)
650 x 550 x 1130
Compression chamber loading height
(mm)
885
Compression chamber volume
(m3)
0,3
Bale size (WxDxH)
(mm)
650 x 550 x 850
Bale weight
(kg)
až 100
Hourly output
(kg/h)
až 120
Number of strapping parts
(ks)
3
Work cycle time
(s)
30
Power consumption / Voltage / Fuse
(kW/V)
1,5 / 1x230 / 16 C
Weight
(kg)
327
Machine dimensions (WxDxH)
(mm)
950 x 850 x 2050
Shipping dimensions (WxDxH)
(mm)
950 x 850 x 2050
Possibility of additional chambers
(yes/no)
NE

Video


Příslušenství


BALE TRUCK

  • For easy operation with bales

CUTTING KNIFE

  • Cutting knife with magnet

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m
