L5-2

DOUBLE-CHAMBER BALING PRESS
with the possibility of additional chambers

Offers

  • It allows the loading of the other chamber during the pressing cycle
  • Possibility to connect additional compression chambers to increase the capacity of the press or for the direct sorting of different types of materials (if required)
  • Safe operation
  • A compact design
  • High compression ratio
L5-V-2-1

OPTIONAL
COLOUR DESIGN

  • Individual colour designs of the press according to the RAL colour chart.

SOPHISTICATED TECHNICAL DETAILS

  • All the presses have sophisticated technical details.
L5-V-2-2
L5-V-2-3

DOUBLE WIRING

  • The electrical safety elements are connected with double wiring.

SAFETY FUSE

  • The safety fuse of the door lever enables the easy opening of the compression chamber for all the presses.
L5-V-2-4
L5-V-2-5

PRESSING DIFFERENT TYPES OF MATERIALS

  • Cardboard – weighing up to 86 kg
  • PE film – weighing up to 72 kg

CONNECTABLE COMPRESSION CHAMBERS

  • An example of a multi-chamber press design with one mobile compression head.
L5-V-2-6
L5-V-2-7

AUXILIARY HOOK (HARPOON)

  • Auxiliary hook (harpoon) that makes it easy to pull straps (binder twine) through.

PRESS DIMENSIONS

l52

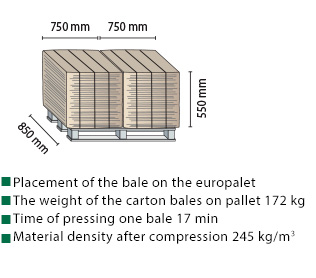

BALE DIMENSIONS

Technical data

Pressing force
(t)
5
Specific pressing force
(kg/cm2)
1,5
Loading hole size
(mm)
750 x 550
Compression chamber size (WxDxH)
(mm)
750 x 550 x 900
Compression chamber loading height
(mm)
1250
Compression chamber volume
(m3)
0,4
Bale size (WxDxH)
(mm)
750 x 550 x 850
Bale weight
(kg)
až 100
Hourly output
(kg/h)
až 300
Number of strapping parts
(ks)
3
Work cycle time
(s)
30
Power consumption / Voltage / Fuse
(kW/V)
1,5 / 1x230 / 16 C
Weight
(kg)
555
Machine dimensions (WxDxH)
(mm)
2000 x 850 x 1950
Shipping dimensions (WxDxH)
(mm)
2000 x 850 x 1950
Possibility of additional chambers
(yes/no)
ANO

Video

Příslušenství

BALE CART

  • For easy operation with bales

CUTTING KNIFE

  • Cutting knife with magnet

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

Parking track



Additional chamber – single



Additional chamber – double
