L5-1

SINGLE-CHAMBER BALING PRESS
with the possibility of additional chambers

Offers

  • Possibility to extend the press from a single-chamber to a multi-chamber press
  • Press filled from the top
  • Safe and easy operation
  • High pressing efficiency
  • A compact design
  • Possibility to adjust the bale height
l5-1-1

PROTECTION BY ELECTRONIC SYSTEMS

  • The positions of the compression head are delimited with stoppers, and at the same time, they are protected by electronic systems.

l5-1-2

COMFORTABLE OPENING

  • A rubber grip ensured the comfortable opening of the compression chamber.
l5-1-3
l5-1-4

HIGHLY RELIABLE AND POWERFUL HYDRAULIC UNIT

  • Our presses are equipped with highly reliable and powerful hydraulic units.

SIMPLE AND INTUITIVE CONTROLS

  • All the devices have simple and intuitive controls.
l5-1-5
l5-1-6

PRESSING DIFFERENT TYPES OF MATERIALS

  • Cardboard – weighing up to 86 kg
  • Polyethylene – weighing up to 65 kg

CONNECTABLE COMPRESSION CHAMBERS

  • The modular design of the press allows any number of compression chambers to be connected.
l5-1-7

PRESS DIMENSIONS

l51

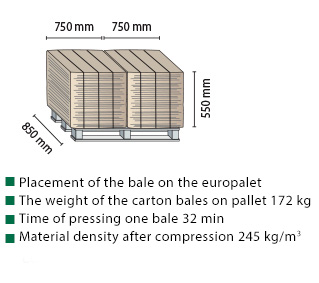

BALE DIMENSIONS

Technical data

Pressing force
(t)
5
Specific pressing force
(kg/cm2)
1,5
Loading hole size
(mm)
750 x 550
Compression chamber size (WxDxH)
(mm)
750 x 550 x 900
Compression chamber loading height
(mm)
1250
Compression chamber volume
(m3)
0,4
Bale size (WxDxH)
(mm)
750 x 550 x 850
Bale weight
(kg)
až 100
Hourly output
(kg/h)
až 160
Number of strapping parts
(ks)
3
Work cycle time
(s)
30
Power consumption / Voltage / Fuse
(kW/V)
1,5 / 1x230 / 16 C
Weight
(kg)
414
Machine dimensions (WxDxH)
(mm)
2050 x 850 x 2000
Shipping dimensions (WxDxH)
(mm)
1350 X 850 X 2000
Possibility of additional chambers
(yes/no)
ANO

Video

Příslušenství

BALE TRUCK

  • For easy operation with bales

CUTTING KNIFE

  • Cutting knife with magnet

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

Parking track



Additional chambre – single



Additional chambre – double
