L12-1

SINGLE-CHAMBER BALING PRESS
with a high output and
the possibility of additional chambers

Offers

  • Press filled from the front
  • New, extremely powerful press model that achieves a very high weight of pressed bales
  • This machine’s considerably advanced technological level compared with competing models is proven by the possibility to install additional compression chambers even in its basic, single-chamber version

Multi-chamber version

A great advantage of the multi-chamber version is the possibility to fill the press chamber through both the top and front doors

121-1

HIGH OUTPUT

  • When the press is loaded completely, a bale weighing up to 290 kg is pressed in 30 seconds
  • Removal of the bale from the press onto a pallet

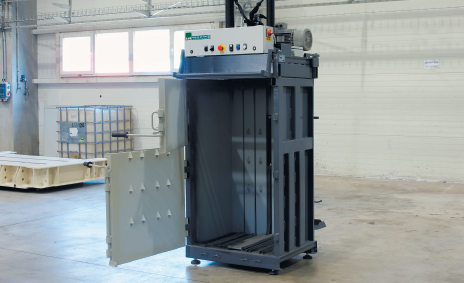

COMPACT MODULAR STRUCTURE

  • Compact modular structure with a split door. A high number of return stoppers.
121-2
121-3

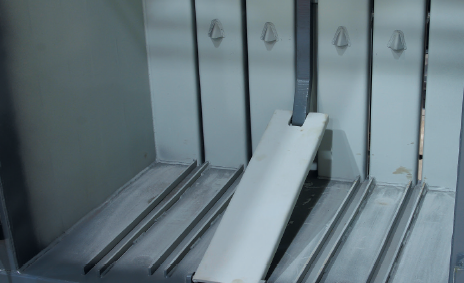

TIPPING FLAP

  • Heavy bales are tipped out of the press by a tipping flap.

CORRECT ENGINEERING DESIGN

  • The lubricators on the moving parts of the machine prove that the press has a correct engineering design.
121-4
121-5

PRESSING DIFFERENT TYPES OF MATERIALS

  • The weight of a regular paper composite bale is up to 290 kg

CONNECTABLE COMPRESSION CHAMBERS

  • We include multi-chamber presses in our other technological units such as conveyor systems and sorting lines.
121-6
121-7

SAFETY LOCKING

  • Safety locking of the door when expansive materials are being pressed.

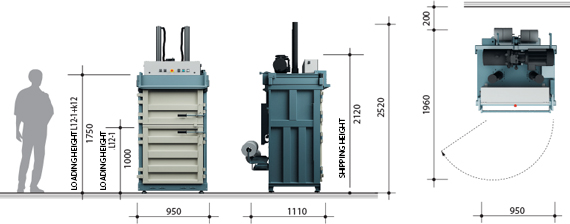

PRESS DIMENSIONS

BALE DIMENSIONS

121-11

Technical data

Pressing force
(t)
12
Specific pressing force
(kg/cm2)
2,5
Loading hole size
(mm)
800 x 550
Compression chamber size (WxDxH)
(mm)
800 x 600 x 1400
Compression chamber loading height
(mm)
1000 / 1750
Compression chamber volume
(m3)
0,7
Bale size (WxDxH)
(mm)
800 x 600 x 1200
Bale weight
(kg)
až 290
Hourly output
(kg/h)
až 300
Number of strapping parts
(ks)
4
Work cycle time
(s)
30
Power consumption / Voltage / Fuse
(kW/V)
3 / 3x400 / 16 C
Weight
(kg)
693
Machine dimensions (WxDxH)
(mm)
950 x 1110 x 2520
Shipping dimensions (WxDxH)
(mm)
950 x 870 x 2120 - 950 x 870 x 2520
Possibility of additional chambers
(yes/no)
ANO

Video

Příslušenství

CUTTING KNIFE

  • Cutting knife with magnet

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

PERFORATOR



down_1

Additional chamber – single



Tool for pressing barrels
