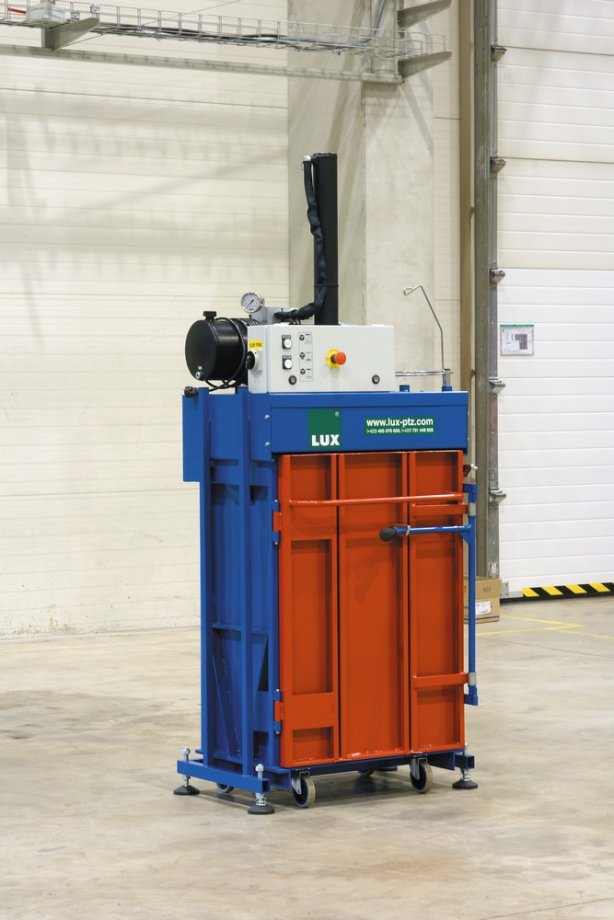

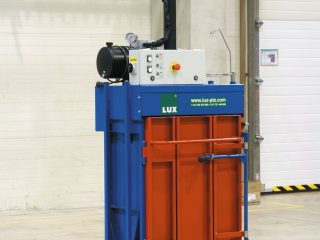

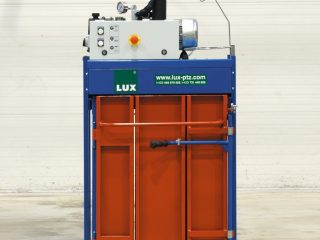

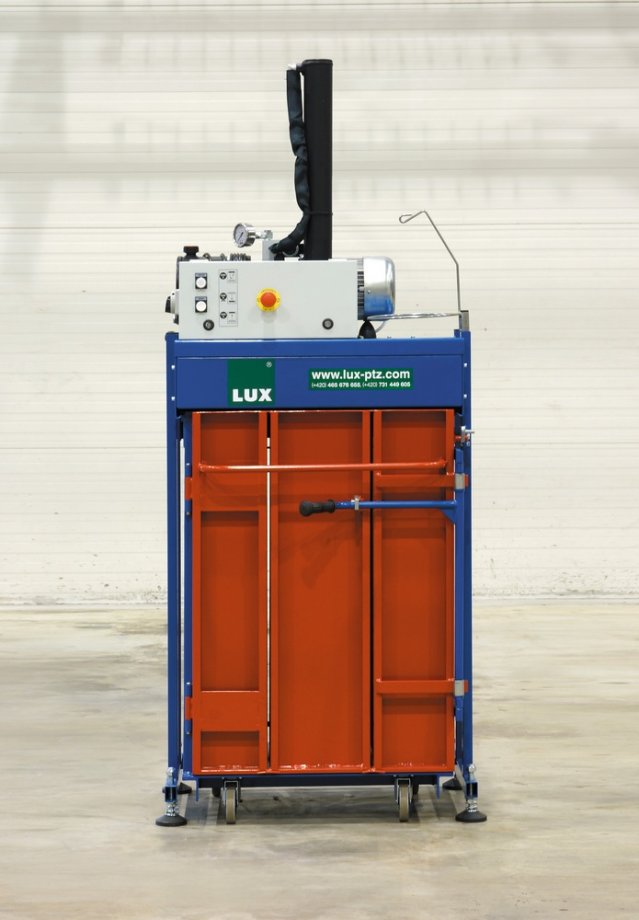

L3-VK

SINGLE-CHAMBER BALING PRESS
with replaceable chambers

Offers

  • A small size, yet a great pressing force
  • Mobile replaceable chambers
  • Low compression chamber loading height
  • The pressing plate is locked in the upper position
  • The possibility to press even wet waste in plastic bags (from kitchens, dining rooms, restaurants, hospitals …)



detail1

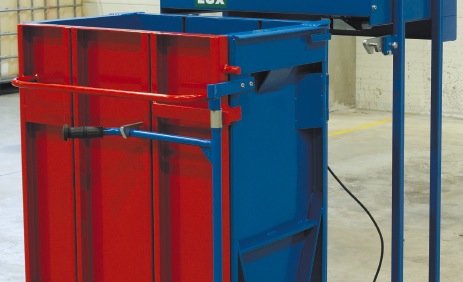

TECHNOLOGICAL GAPS

  • The risk of injury is reduced if the technological gaps are as small as possible.

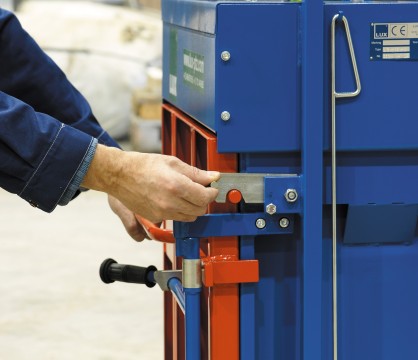

SAFETY FUSE

  • The safety fuse ensures the correct position of the compression chamber.
SONY DSC

detail2

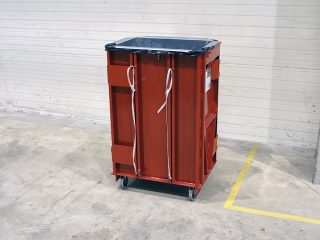

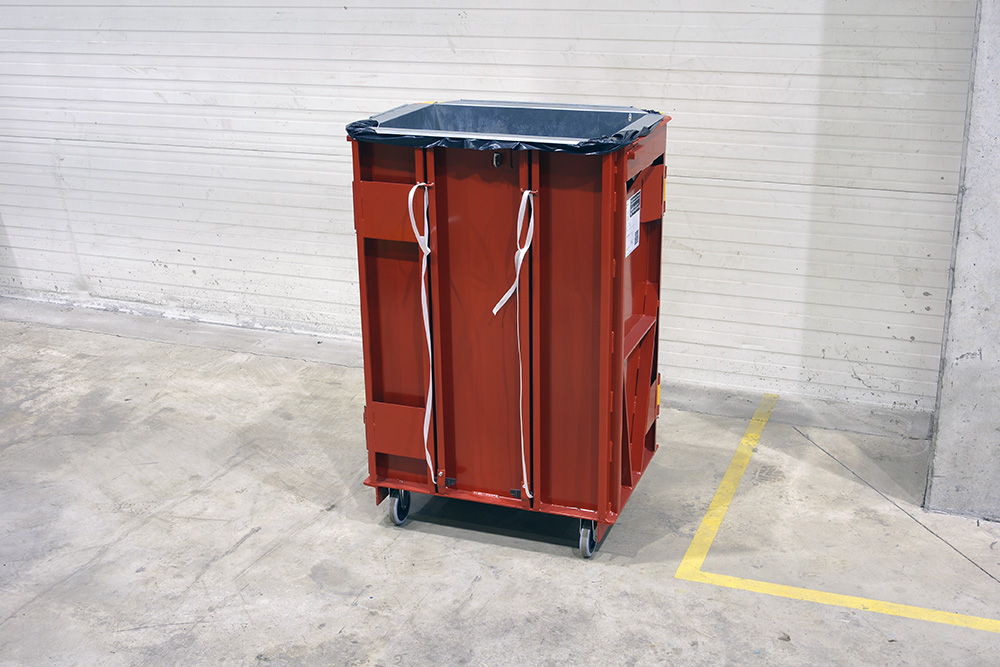

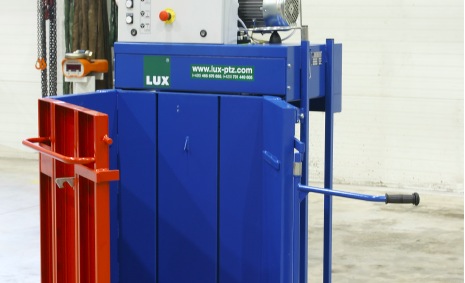

MOBILE SIDE WALL

  • A mobile compression chamber side wall for the easy removal of the compressed bale.

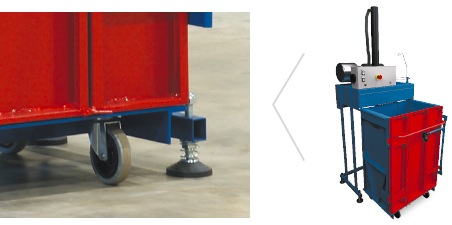

MOBILITY AND SAFETY

  • The adjustable foot balances out uneven surface areas and ensures stability during pressing operations.
  • The wheels on the compression chamber allow the easy removal of the compression chamber from the press.
  • The press consists of a separate pressing stand, and any number of compression chambers can be added to it.
detail3

baliky

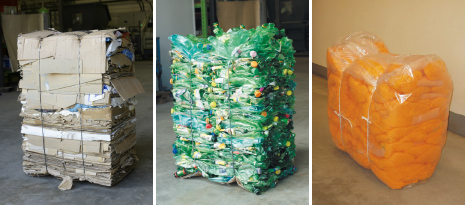

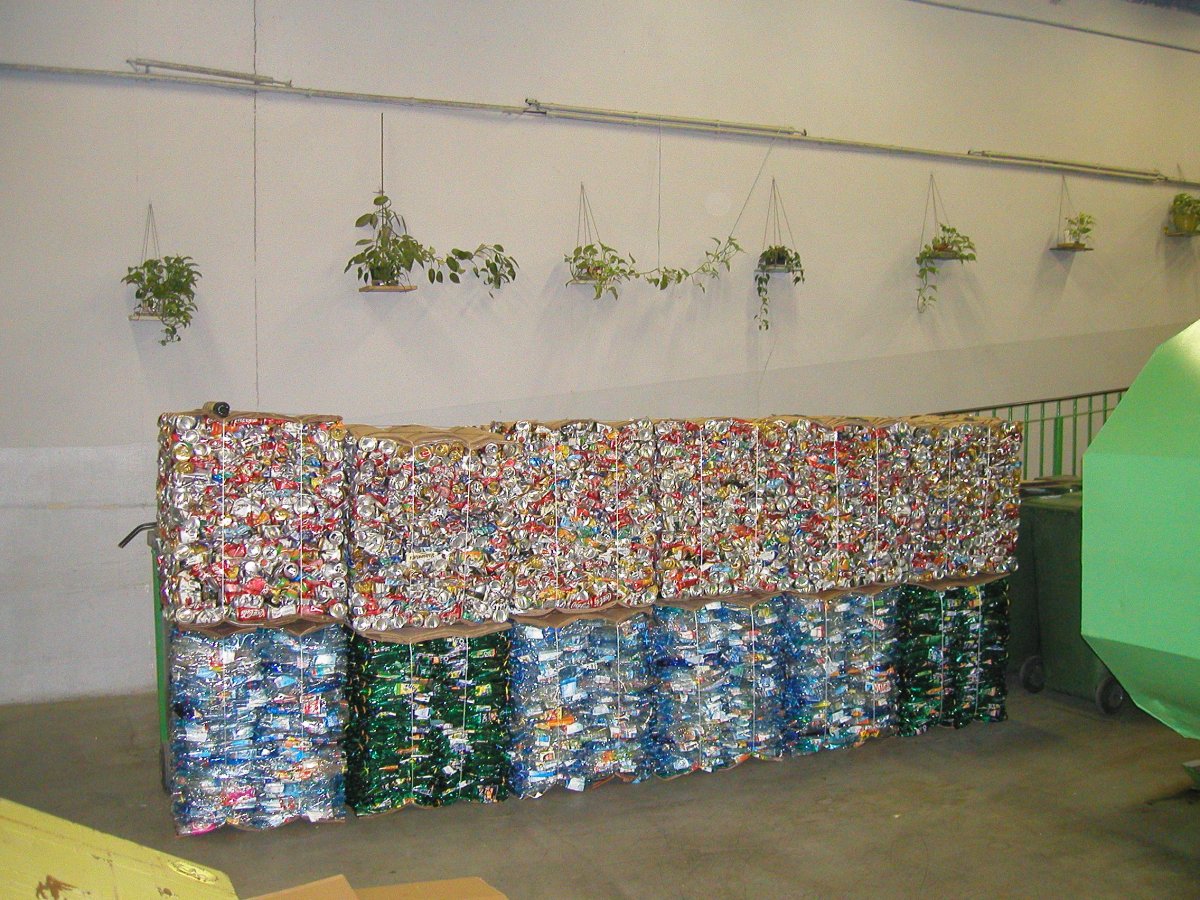

PRESSING DIFFERENT TYPES OF MATERIALS

  • Cardboard – weighing up to 53 kg
  • Beverage cans / PET bottles weighing up to 35 kg / 25 kg
  • Foam – weighing up to 21 kg

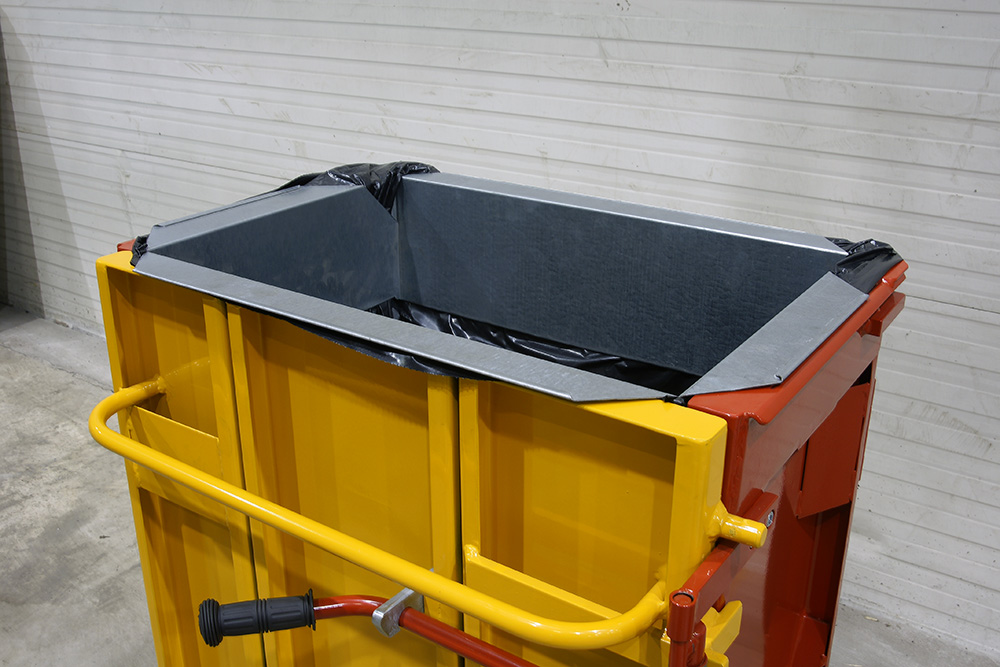

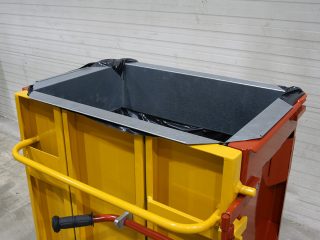

  • Pressing directly into plastic bags

maly

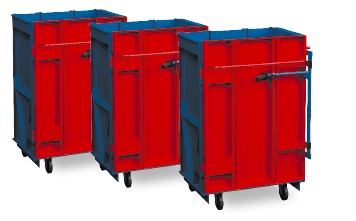

VARIABILITY

  • The accessory chambers are used to increase the pressing capacity of the press or for sorting different types of pressed material.
detail5

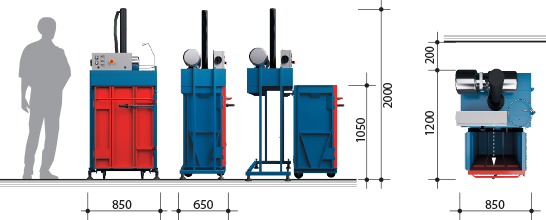

PRESS DIMENSIONS

lv3

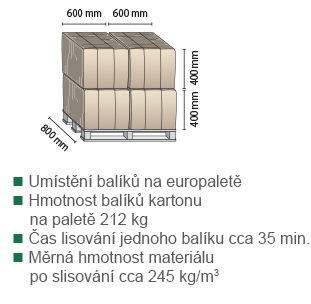

BALE DIMENSIONS

umisteni

Technical data


Pressing force
(t)
3
Specific pressing force
(kg/cm2)
1,5
Loading hole size
(mm)
600 x 400
Compression chamber size (WxDxH)
(mm)
600 x 400 x 950
Compression chamber loading height
(mm)
1050
Compression chamber volume
(m3)
0,2
Bale size (WxDxH)
(mm)
600 x 400 x 900
Bale weight
(kg)
až 60
Hourly output
(kg/h)
až 90
Number of strapping parts
(ks)
2
Work cycle time
(s)
30
Power consumption / Voltage / Fuse
(kW/V)
1,5 / 1x230 / 16 C
Weight
(kg)
234
Machine dimensions (WxDxH)
(mm)
850 x 650 x 2000
Shipping dimensions (WxDxH)
(mm)
850 x 700 x 2150
Possibility of additional chambers
(yes/no)
ANO

Video


Příslušenství


BALE TRUCK

  • For easy handling with bundles

CUTTING KNIVE

  • Cutting knive with magnet on back side

SACKS

  • Sacks for L3-VK

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

Sack clipping form
