L50-1

SINGLE-CHAMBER BALING PRESS

Technical data

Pressing force
(t)
50
Specific pressing force
(kg/cm2)
5,5
Loading hole size
(mm)
1150x500
Compression chamber size (WxDxH)
(mm)
1200x800x1500
Compression chamber loading height
(mm)
1150
Compression chamber volume
(m3)
1,5
Bale size (WxDxH)
(mm)
1200x800x1000
Bale weight
(kg)
až 600
Hourly output
(kg/h)
až 600
Number of strapping parts
(ks)
4
Work cycle time
(s)
45
Power consumption / Voltage / Fuse
(kW/V)
5,5/3x400/25A/C
Weight
(kg)
2112

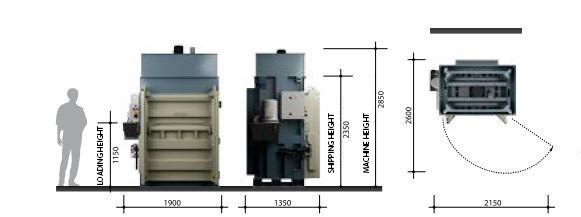

Machine dimensions (WxDxH)
(mm)
1900x1350x2850
Shipping dimensions (WxDxH)
(mm)
1900x1350x2350
Possibility of additional chambers
(yes/no)
no

Video

Příslušenství

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

PERFORATOR

down_1

Parking path



Additional chambre – single



Additional chambre – double
