Baling press L50-1

Technical data

Pressing force (t)	50
Specific pressing force (kg/cm²)	5,5
Loading hole size (mm)	1150x500
Compression chamber size (WxDxH) (mm)	1200x800x1500
Compression chamber loading height (mm)	1150
Compression chamber volume (m³)	1,5
Bale size (WxDxH) (mm)	1200x800x1000
Bale weight (kg)	až 600
Hourly output (kg/h)	až 600
Number of strapping parts (ks)	4
Work cycle time (s)	45
Power consumption / Voltage / Fuse (kW/V)	5,5/3x400/25A/C
Weight (kg)	2112

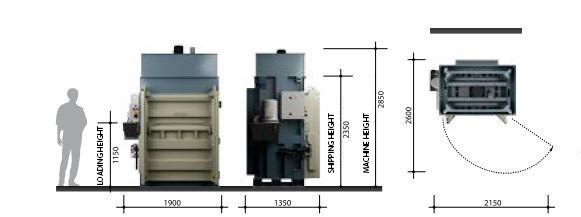

Machine dimensions (WxDxH) (mm)	1900x1350x2850
Shipping dimensions (WxDxH) (mm)	1900x1350x2350
Possibility of additional chambers (yes/no)	no

Video

Příslušenství

PP TWINE

in length of 450 m

STRIPING TAPE

in length of 500 m

PERFORATOR

down_1

Parking path

Additional chambre – single

Additional chambre – double
