L30-2

DOUBLE-CHAMBER BALING PRESS
with the possibility of additional chambers

The strongest double-chamber baling press – pressing force of 30 tons. The bales from the press meet the demanding size and weight requirements of waste collection companies. It is especially suitable for pressing multiple types of material – e.g. cardboard and film. It enables the easy sorting of material directly in each chamber without the need to store the waste in another place. It is also very suitable for use in sorting lines and in operations where large quantities of pressed material need to be processed. The sophisticated structure of the press allows it to be easily extended with additional chambers in the future.

Technical data

Pressing force
(t)
30
Specific pressing force
(kg/cm2)
3,5
Loading hole size
(mm)
1200×800
Compression chamber size (WxDxH)
(mm)
1200×800×1400
Compression chamber loading height
(mm)
1000 přední plnění, 1700 horní plnění
Compression chamber volume
(m3)
1,5
Bale size (WxDxH)
(mm)
1200×800×1000
Bale weight
(kg)
až 450
Hourly output
(kg/h)
až 600
Number of strapping parts
(ks)
4
Work cycle time
(s)
50
Power consumption / Voltage / Fuse
(kW/V)
5,5/3x400/25A/C
Weight
(kg)
2338

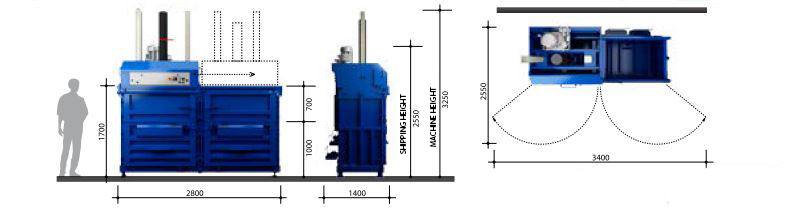

Machine dimensions (WxDxH)
(mm)
2800×1400×3250
Shipping dimensions (WxDxH)
(mm)
2800×1200×2550
Possibility of additional chambers
(yes/no)
yes

Video

Příslušenství

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

PERFORATOR

down_1

Parking path



Additional chambre – single



Additional chambre – double
