L30-1R

SINGLE-CHAMBER BALING PRESS
with a parking track

Technical data

Pressing force
(t)
30
Specific pressing force
(kg/cm2)
3,5
Loading hole size
(mm)
1200x800
Compression chamber size (WxDxH)
(mm)
1200x800x1400
Compression chamber loading height
(mm)
1000 přední plnění, 1700 horní plnění
Compression chamber volume
(m3)
1,5
Bale size (WxDxH)
(mm)
1200x800x1000
Bale weight
(kg)
až 450kg
Hourly output
(kg/h)
až 300
Number of strapping parts
(ks)
4
Work cycle time
(s)
50
Power consumption / Voltage / Fuse
(kW/V)
5,5/3x400/25A/C
Weight
(kg)
1678

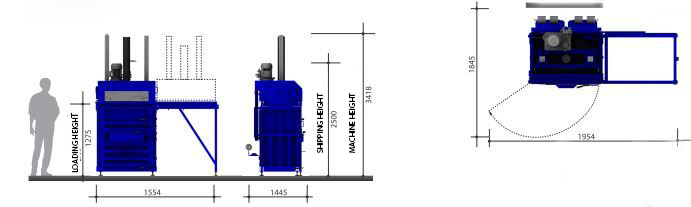

Machine dimensions (WxDxH)
(mm)
2820x1400x3240
Shipping dimensions (WxDxH)
(mm)
1400x1205x2560
Possibility of additional chambers
(yes/no)
yes

Video

Příslušenství

PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

PERFORATOR

down_1

Parking path



Additional chambre – single



Additional chambre – double
