L20-1

SINGLE-CHAMBER BALING PRESS
with the possibility of additional chambers

The single-chamber 20-100 tonne baling press is a robust, top-loaded press with simple and safe operation. It provides a large compression chamber with a powerful unit, which allows various kinds of materials (cardboard, paper composite, PET bottles, textiles, film, barrels, etc.) to be processed into large and heavy bales (e.g. up to 185 kg in cardboard). Non-stop technical support, including service, is a matter of course. The press can be equipped with many other components, accessories and equipment (a feed hopper, tipping device, a PET bottle perforator, etc.).

The press and all the other offered accessories meet all the latest operational safety requirements.

The L20-1 baling press is suitable for small and medium-sized companies for various types of pressed material.

Main advantages:

  • Possibility to install an additional compression chamber
  • Safe and easy operation
  • High pressing efficiency
  • A compact design
  • Individual bale height adjustment
  • Mobile compression head

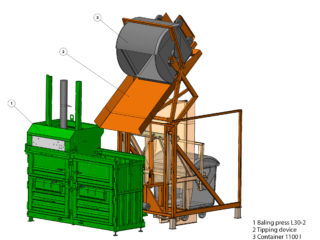

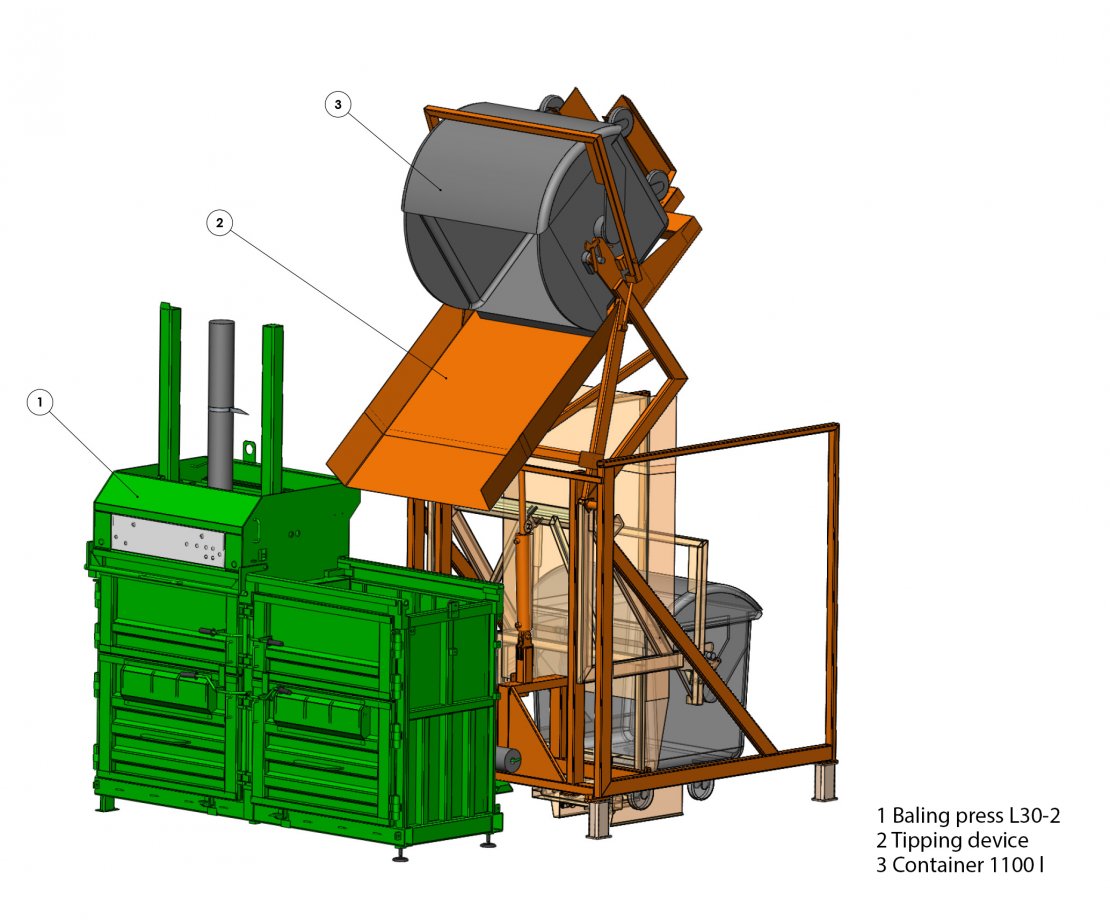

  • Extended press functionality thanks to additional components, accessories and equipment (feed hopper, tipping device, etc.)
  • Hydraulic tipping of pressed bale out of the chamber

Technical data


Pressing force
(t)
20
Specific pressing force
(kg/cm2)
2,5
Loading hole size
(mm)
1100x700
Compression chamber size (WxDxH)
(mm)
1100x700x1145
Compression chamber loading height
(mm)
1420
Compression chamber volume
(m3)
0,88
Bale size (WxDxH)
(mm)
1100x700x800
Bale weight
(kg)
100-300
Hourly output
(kg/h)
až 175
Number of strapping parts
(ks)
4
Work cycle time
(s)
37
Power consumption / Voltage / Fuse
(kW/V)
5,5/3x400/25A/C
Weight
(kg)
1047

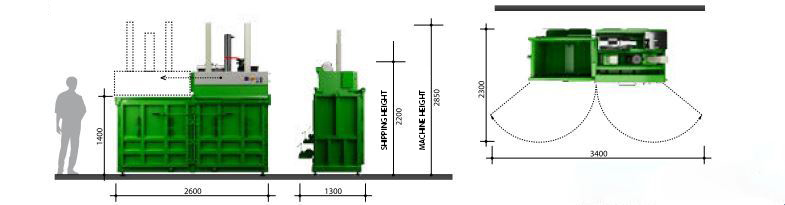

Machine dimensions (WxDxH)
(mm)
2550x1310x2825
Shipping dimensions (WxDxH)
(mm)
1330x1050x2200 + 1260x850x1420

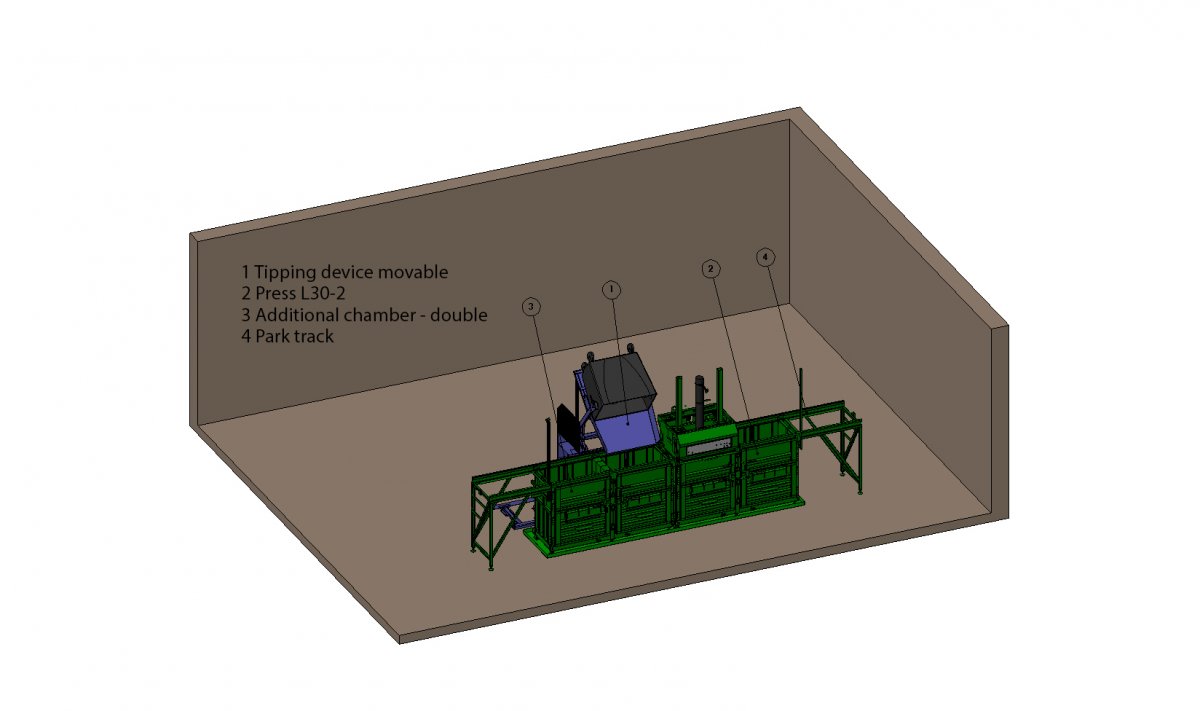

Possibility of additional chambers
(yes/no)
yes

Video


Příslušenství


PP TWINE

  • in length of 450 m

STRIPING TAPE

  • in length of 500 m

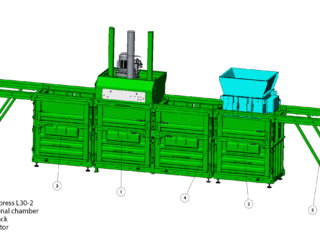

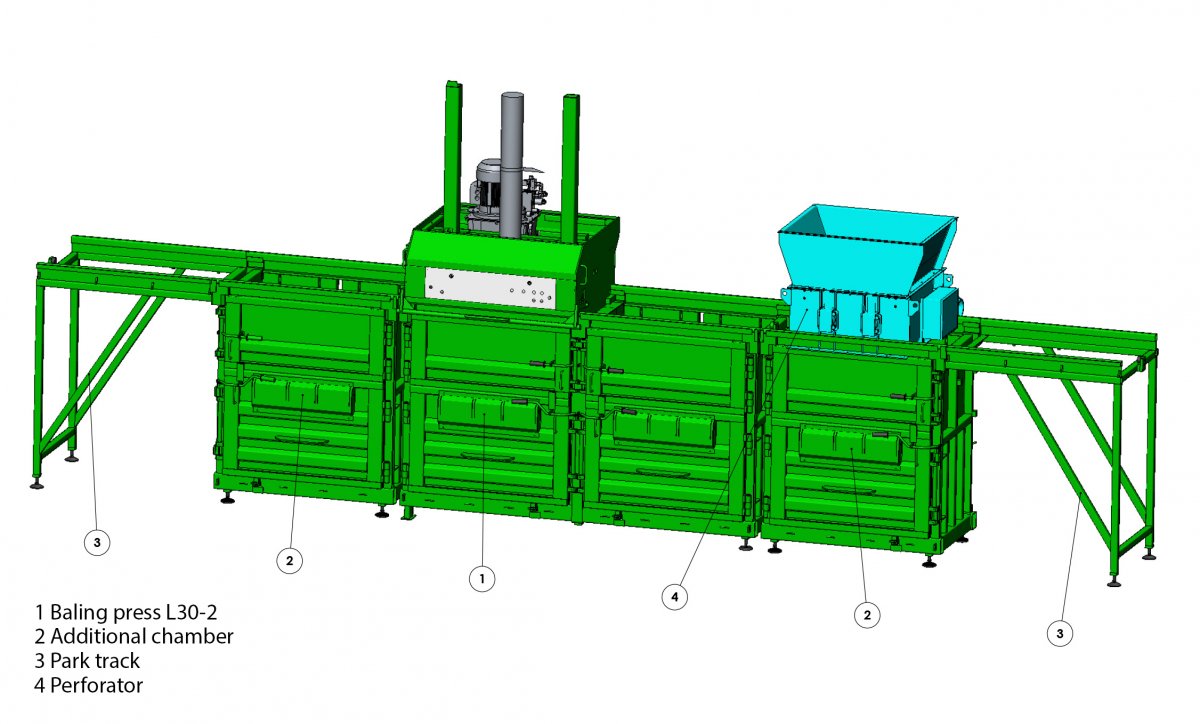

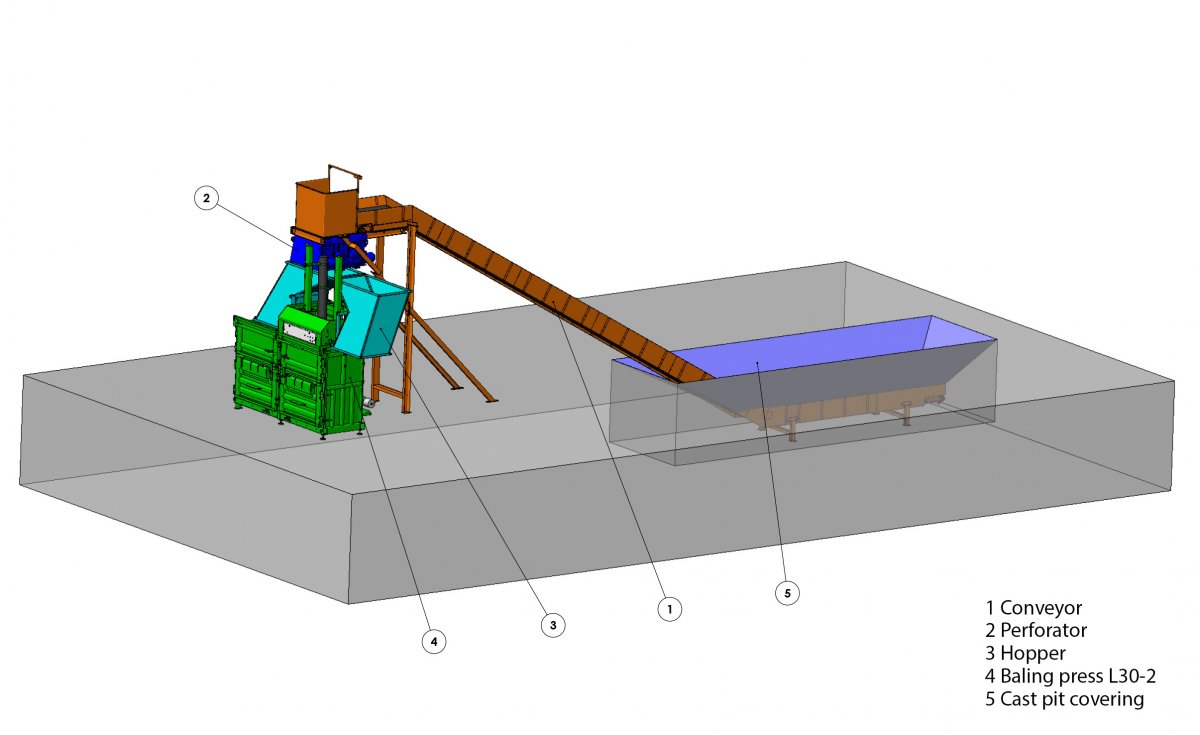

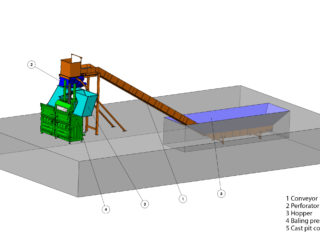

PERFORATOR

down_1

Parking path

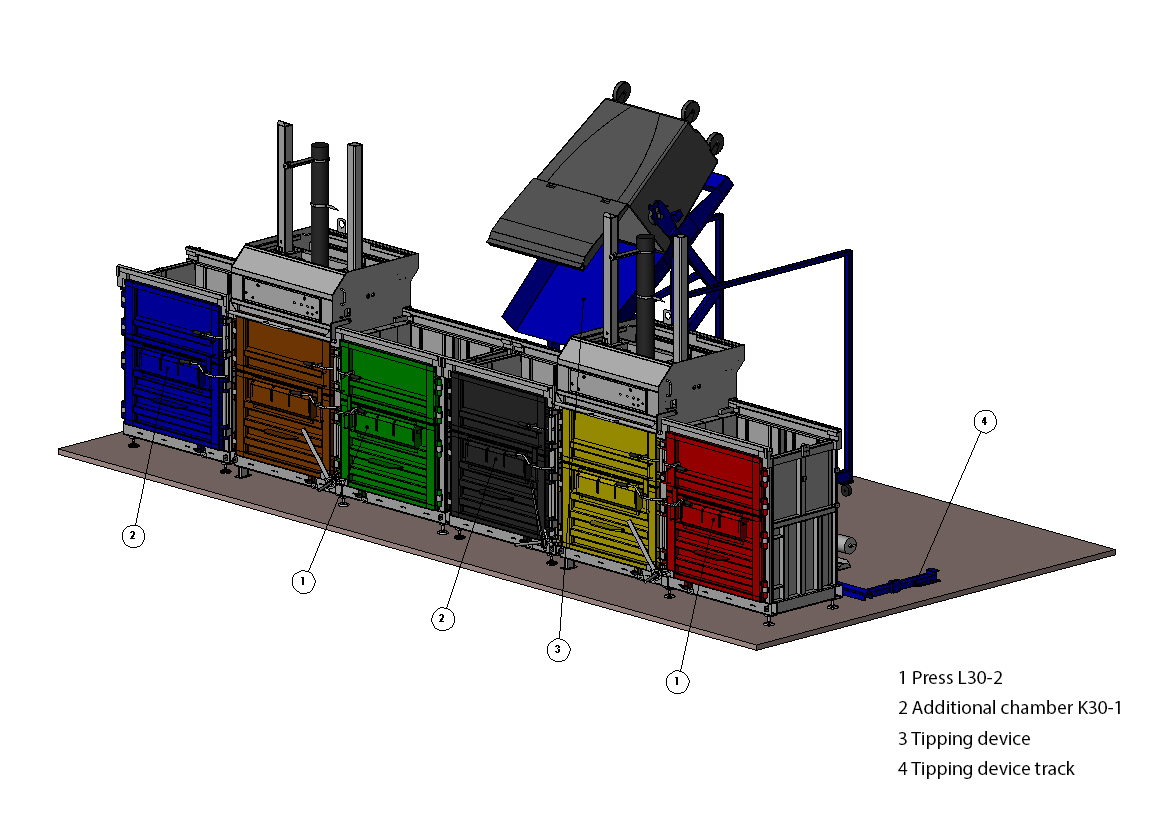

Additional chambre – single

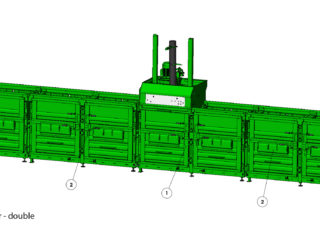

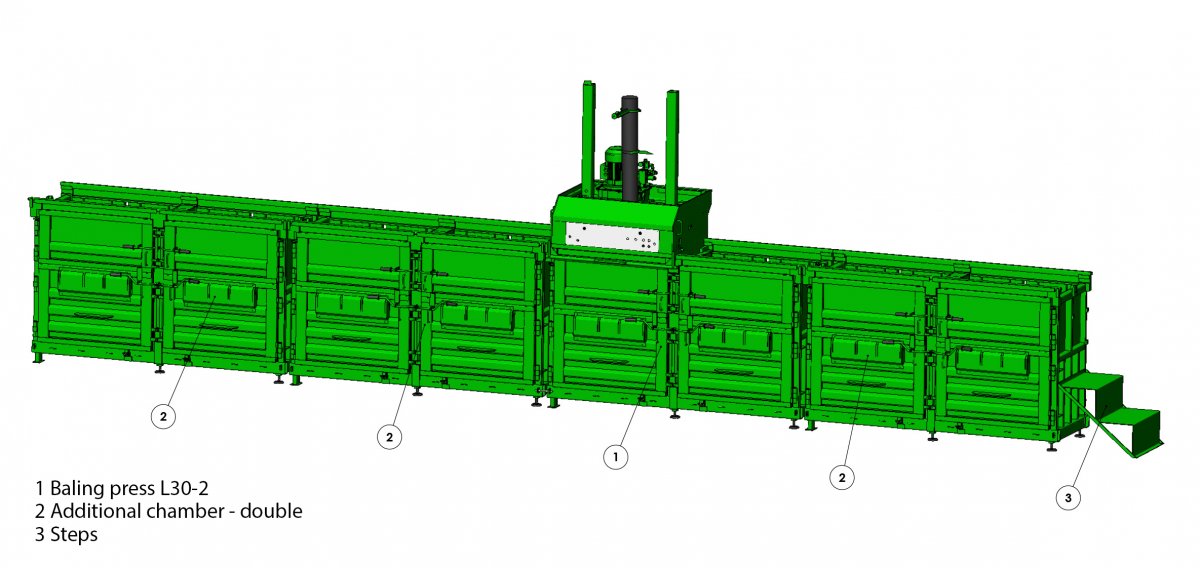

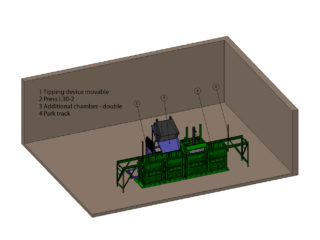

Additional chambre – double
