Technical data


Pressing force
(t)
30
Specific pressing force
(kg/cm2)
3,3
Loading hole size
(mm)
1100x620
Compression chamber size (WxDxH)
(mm)
1200x800x1400
Compression chamber loading height
(mm)
1040
Compression chamber volume
(m3)
1,5
Bale size (WxDxH)
(mm)
1200x800x1150
Bale weight
(kg)
až 450
Number of strapping parts
(ks)
4
Work cycle time
(s)
25
Hmotnost nalisovaného materiálu
(t)
150-450
Power consumption / Voltage / Fuse
(kW/V)
5,5/3x400/25A/C
Weight
(kg)
1935

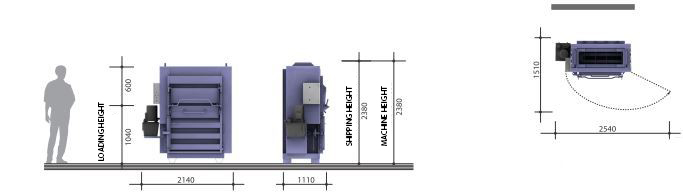

Machine dimensions (WxDxH)
(mm)
2140x1110x2380
Shipping dimensions (WxDxH)
(mm)
2140x1110x2380
Possibility of additional chambers
(yes/no)
no
